Gefen 1:8 VGA CAT5 Distribution Receiver Item # 111533

 |

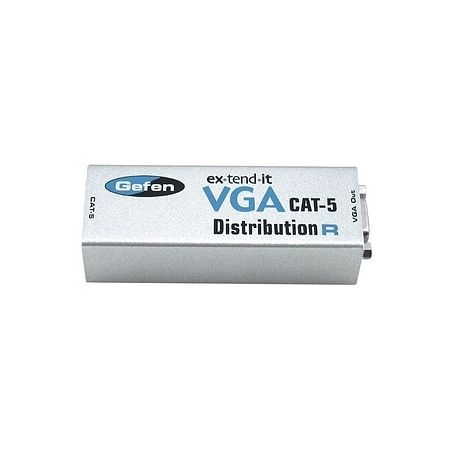

Gefen 1:8 VGA CAT5 Distribution Receiver
$ 113 .99 / each $113.99
In Stock
Free delivery
Estimated delivery 20-30 business days

    Description

    The VGA CAT5 Distribution R connects via CAT5 cable to the 1x8 VGA CAT5 Distribution Sender. The receiver can be connected up to 330 feet away from the Sender unit. One CAT-5 cable connects the sender and the receiver to each other, extending your video flawlessly.Easily distribute one source to eight simultaneous displays. The VGA CAT5 Distribution R extends video signals up to 330 feet over CAT-5e, supports component video distribution, maintains 1920 x 1200 resolution video and allows eight monitors to be connected to the same video source at the same time. It installs in minutes.

    Back To Top

    Product Details

    Item # 111533
    Manufacturer # EXTVGACAT5148R
    Maximum Operating Distance 330 ft
    brand name Gefen
    Graphics Modes VGA; WUXGA
    Maximum Video Resolution 1920 x 1200
    Additional Information Input Video Signal: 1.2 volts p-p; Input Sync Signal: 5 volts p-p (TTL); Horizontal Frequency Range: 15 - 70 KHz; Vertical Frequency Range: 30 - 170 Hz; Power Consumption: 30 Watts (max.); Sender Dimensions: 8.5"W x 1.75" H x 4.5"D; Receiver Dimensions: 1"W x 1"H x 4"D
    Input Voltage 5 V DC
    Media Type Supported Twisted Pair
    Connectivity Technology Wired
    Number of Output Devices Supported 1
    Number of Input Devices Supported 1
    Product Name 1:8 VGA CAT5 Distribution Receiver
    Twisted Pair Cable Standard Category 5
    manufacturer Gefen, Inc
    warranty length 1-year limited
